The Hall Bulldog Project

1932 Thompson Trophy Contender

Future Project

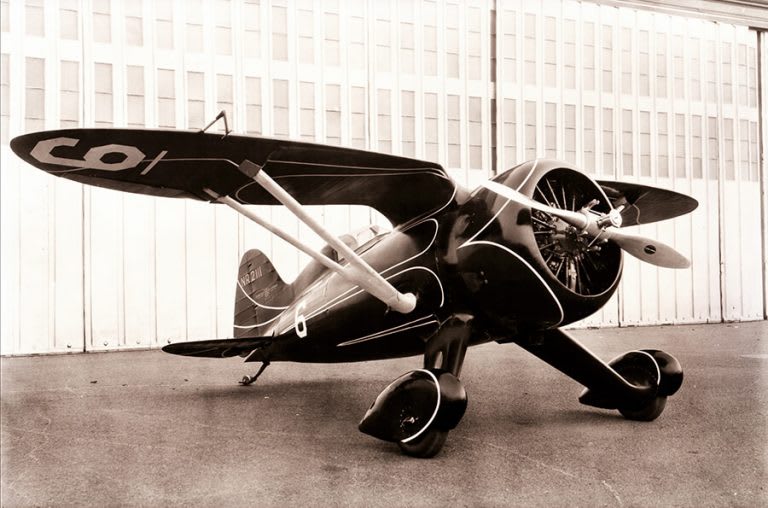

Hall Bulldog Racer

The Hall Bulldog Project documents my love affair with this amazing 1932 Thompson Trophy contender. Designed by Bob Hall and completed in just a few weeks, this aircraft was state of the art.

Stay tuned as I tell the whole story. I have collected possibly every photo ever taken of this aircraft and lots of additional information.

The dream is to make a flying aircraft. We'll see...

I am deeply indebted to Tony Horvath of Specialty Aero and aviation historian Matt Lawlor for their numerous contributions to the collection and maintenance of the Hall Bulldog materials presented here.

We have a lot of content to upload here, so stand by!

The Story

The Hall Bulldog was designed and built by Robert "Bob" Hall in 1932. After contributing to the design of the renowned Gee Bee Z with the Granville Brothers, Hall struck out on his own in late 1931, founding the Springfield Aircraft Company in nearby Agawam, Massachusetts.

Financed by the Guggenheim family, the V-2 Bulldog was a small single-place, gull-winged airplane built to fly in the 1932 Cleveland National Air Races and the Thompson Trophy Race. Built at Bowles-Agawam Airport in Agawam, Massachusetts, the aircraft featured one of Hamilton Standard's first controllable pitch propellers.

Hall chose the distinctive gull-wing design after witnessing the Polish PZL P.6 flown by Boleslaw Orlinski at the 1931 National Air Races. He believed the gull-wing could provide better longitudinal stability, something he felt was lacking in the low-wing monoplane design of the Gee Bee Z.

During Thompson Trophy Race qualifications, the Bulldog achieved an average top speed of 244 mph, with a fleeting peak of 270 mph. In the race itself, the aircraft finished 6th with an average speed of 216 mph. There are several theories about what led to the Bulldog's poor showing—some believe the propeller pitch settings may have limited engine performance, while others point to Bob Hall's decision to use narrower fuel lines, which may have prevented the Wasp engine from reaching its full potential.

Aircraft Specifications

Dimensions

Wingspan
26 ft / 7.9 m
Length
19 ft / 5.8 m
Configuration
Single-seat
Paint Scheme
Red & Black w/ White Stripe

Wing

Planform
Gull
Sweepback
Washout
None
Airfoil
M6 (75% thickness)
Aileron Differential
Extreme, no down movement

Performance

Qualifying Speed
244 mph
Race Speed
216 mph
Peak Speed
270 mph
Race Number
6

Engine

Type
Pratt & Whitney Wasp T3D1
Serial Number
4820
Power
730 hp @ 2,300 RPM
Propeller
Hamilton Standard (8'1" dia.)

Details

Year Built
1932
Built At
Bowles Airport, Agawam, MA
Thompson Trophy Finish
6th Place

Photo Gallery

Hall Bulldog photo 1
Hall Bulldog photo 2

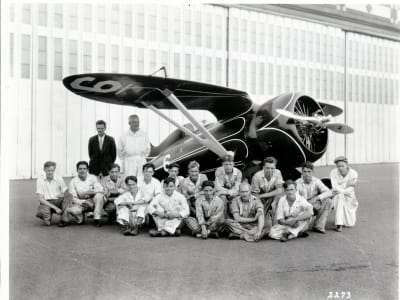

Hall Bulldog photo 3

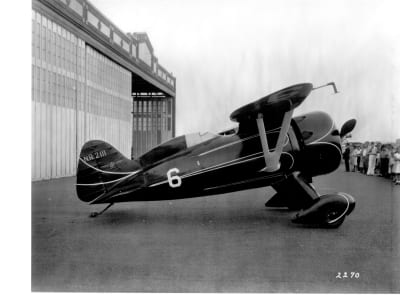

Hall Bulldog photo 4

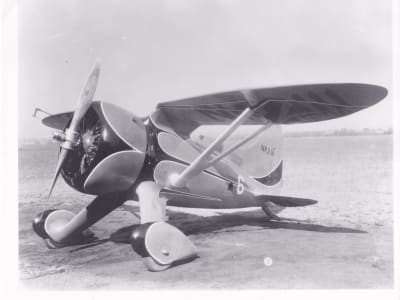

Hall Bulldog photo 5

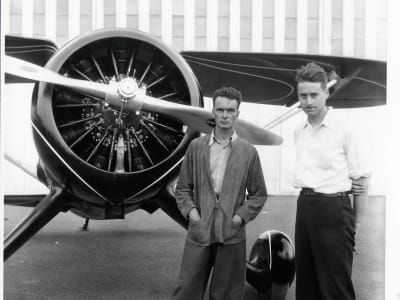

Hall Bulldog photo 6

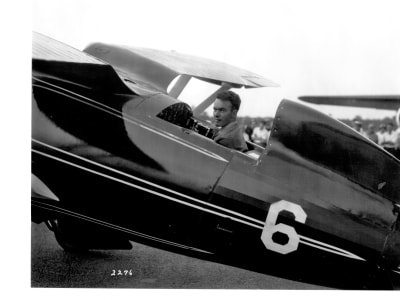

Hall Bulldog photo 7
Hall Bulldog photo 8

Related Articles

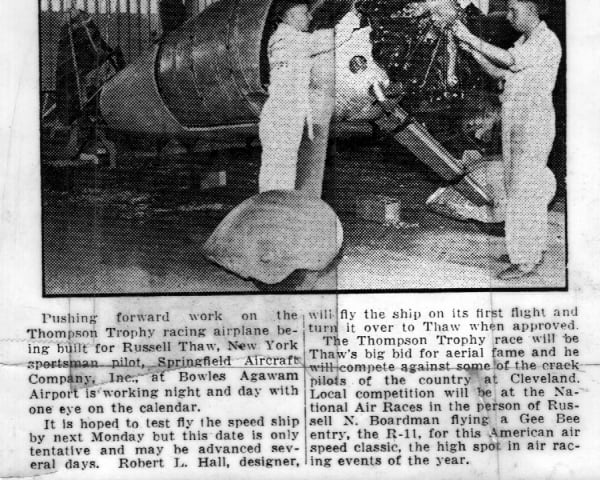

Hall Bulldog in the Press: 1931-1932 Newspaper Coverage

Hall Bulldog in the Press: 1931-1932 Newspaper Coverage

A chronological collection of newspaper clippings documenting the Hall Bulldog's development and racing career, from Bob Hall's departure from Granville Brothers through the 1932 Thompson Trophy Race.

Hall Bulldog Project
Hall Bulldog Takeoff Footage

Hall Bulldog Takeoff Footage

Rare animated footage of the Hall Bulldog taking off at Cleveland during the 1932 National Air Races, digitized from period newsreel film.

Hall Bulldog Project
Bob Hall's Flight Log: Summer of 1932

Bob Hall's Flight Log: Summer of 1932

A transcription of Bob Hall's flight log entries from the summer of 1932, documenting test flights in the Hall Cicada and the historic first flight of the Hall Bulldog

Hall Bulldog Project
Notes from Premo Galletti: A Day-by-Day Account of the Hall Bulldog

Notes from Premo Galletti: A Day-by-Day Account of the Hall Bulldog

Handwritten notes documenting the daily events at Springfield Aircraft Co. during the Hall Bulldog's final construction and testing, August 14-28, 1932—including Russell Thaw's dramatic rejection of the aircraft

Hall Bulldog Project
The Robert E Barnstead Photo Collection

The Robert E Barnstead Photo Collection

A collection of period photographs from the 1932 Cleveland Air Races, including rare images of the Hall Bulldog and Gee Bee racing aircraft, courtesy of the Barnstead family via Steve Rush.

Hall Bulldog Project

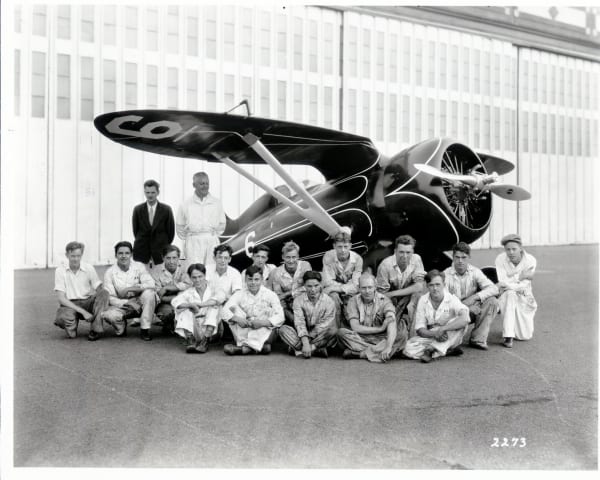

Hall Bulldog Photo Timeline

Hall Bulldog Photo Timeline

A chronological collection of period photographs documenting the Hall Bulldog's 1932 racing season, from construction at Bowles Agawam Airport to the Cleveland National Air Races.

Hall Bulldog Project
The Sweepback Controversy

The Sweepback Controversy

Examining the evidence for and against the Hall Bulldog's swept wing design, including 3D model analysis, wing shadow comparisons, and a response to historian Mike Kusenda's 'Sweepback Enigma'

Hall Bulldog Project
Hall Bulldog 3D Modeling: Final Report

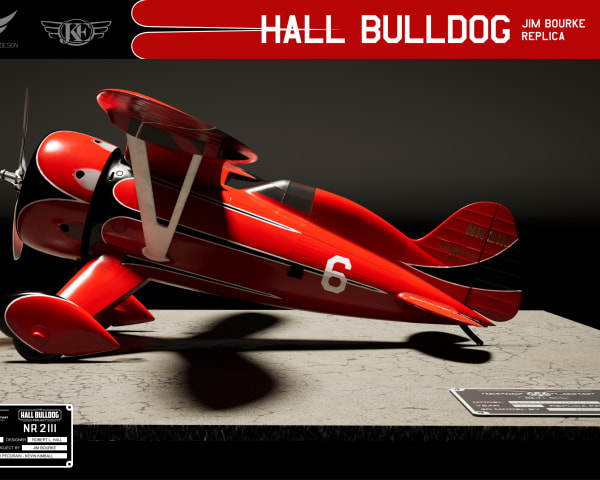

Hall Bulldog 3D Modeling: Final Report

Final comprehensive report from Mirco Pecorari of Aircraft Studio Design documenting the complete Hall Bulldog 3D model with paint scheme and weathering

Hall Bulldog Project
Hall Bulldog Project Check-in - May 2023

Hall Bulldog Project Check-in - May 2023

Latest update on The Hall Bulldog Project's ongoing efforts to document and revive Bob Hall's 1932 racing aircraft

Hall Bulldog Project
Hall Bulldog 3D Modeling: Refined Details

Hall Bulldog 3D Modeling: Refined Details

Report 4 from Mirco Pecorari of Aircraft Studio Design documenting the integration of CAD engineering with the 3D model, and modeling of the empennage and engine

Hall Bulldog Project
Hall Bulldog Wing Shape Revisions - January 2023

Hall Bulldog Wing Shape Revisions - January 2023

Kevin Kimball's engineering update incorporating Mirco Pecorari's refined 3D surface model, including wing leading edge corrections, strut fitting angle changes, and dihedral adjustments.

Hall Bulldog Project
The Pratt & Whitney R-1340 Wasp: Engine of the Hall Bulldog

The Pratt & Whitney R-1340 Wasp: Engine of the Hall Bulldog

Comprehensive specifications for the Pratt & Whitney R-1340 Wasp engine family, including the T1D1 variant used in the Hall Bulldog and Gee Bee R1

Hall Bulldog Project
Hall Bulldog 3D Modeling: Building and Validating the Model

Hall Bulldog 3D Modeling: Building and Validating the Model

Report 3 from Mirco Pecorari of Aircraft Studio Design documenting the 3D modeling process and validation against historical photos

Hall Bulldog Project
Hall Bulldog Period Drawings

Hall Bulldog Period Drawings

Original engineering and construction drawings of the Hall Bulldog from 1932-1933, including Bradford wing drawings and Primo Galletti 3-views created during or shortly after the aircraft's brief racing career

Hall Bulldog Project
Hall Bulldog 3D Modeling: Pictures Analysis and 2D Views

Hall Bulldog 3D Modeling: Pictures Analysis and 2D Views

Report 1 from Mirco Pecorari of Aircraft Studio Design documenting the initial analysis of historical photos and creation of 2D drawings for the Hall Bulldog replica project

Hall Bulldog Project
Robert 'Bob' Hall: From Gee Bee to Grumman

Robert 'Bob' Hall: From Gee Bee to Grumman

The remarkable career of Robert Leicester Hall, who designed the Gee Bee Z and Hall Bulldog racers before becoming Grumman's chief engineer responsible for the Hellcat, Avenger, and other iconic WWII aircraft

Hall Bulldog Project
The Hall Bulldog Project Logos

The Hall Bulldog Project Logos

Official logos for The Hall Bulldog Project - available in white and black versions with downloadable source files

Hall Bulldog Project
Springfield Aircraft Company: The 1932 Logo

Springfield Aircraft Company: The 1932 Logo

The original logo of Bob Hall's Springfield Aircraft Company, featuring a stylized radial engine and gull wing design that captured the spirit of 1930s air racing

Hall Bulldog Project
Hall Bulldog Aileron Linkage and Fuselage Frame Design - November 2021

Hall Bulldog Aileron Linkage and Fuselage Frame Design - November 2021

Kevin Kimball's detailed engineering update covering the Hall Bulldog aileron control system design with strap hinges, bell cranks, and the parametric fuselage tube frame model.

Hall Bulldog Project
Hall Bulldog Strut Fitting FEA Analysis - August 2021

Hall Bulldog Strut Fitting FEA Analysis - August 2021

Kevin Kimball's Finite Element Analysis (FEA) of the Hall Bulldog wing strut fittings, validating the structural design under expected flight loads.

Hall Bulldog Project
Hall Bulldog Project Update - August 2021

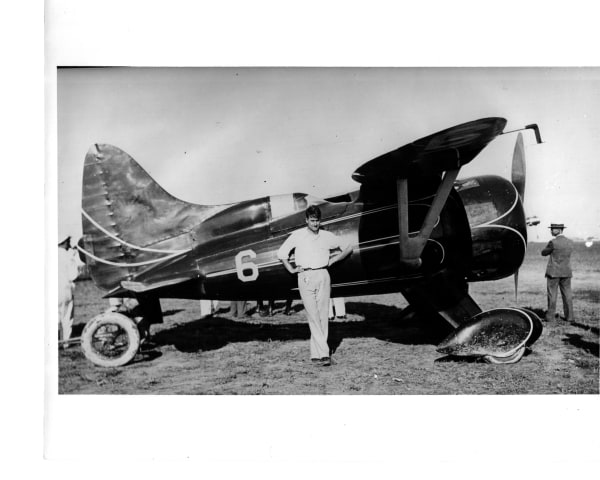

Hall Bulldog Project Update - August 2021

Project update on The Hall Bulldog Project's progress in documenting and reviving Bob Hall's 1932 racing aircraft

Hall Bulldog Project
Hall Bulldog Landing Gear Design Study - July 2021

Hall Bulldog Landing Gear Design Study - July 2021

Kevin Kimball's comparative study of landing gear options for the Hall Bulldog replica, examining Jenkins-style and Stinson SR-style gear configurations.

Hall Bulldog Project
Hall Bulldog CAD Modeling Progress - May 2021

Hall Bulldog CAD Modeling Progress - May 2021

Kevin Kimball's CAD screenshots showing the Hall Bulldog wing component design, including CNC router-ready nose rib patterns and detailed rib layouts.

Hall Bulldog Project
Hall Bulldog Wing Construction Progress - March 2021

Hall Bulldog Wing Construction Progress - March 2021

Kevin Kimball's progress photos showing the Hall Bulldog wing structural design and construction, including the wood rib structure, spars, and internal framework.

Hall Bulldog Project
Interview with Eric Hall

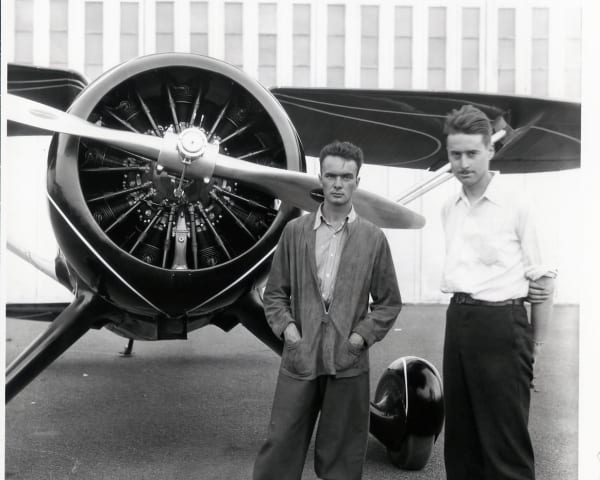

Interview with Eric Hall

Jim Bourke and Matthew Lawlor interview Eric Hall, son of aircraft designer Bob Hall, with personal stories about his famous father

Hall Bulldog Project
Interview with Josh Trevisiol

Interview with Josh Trevisiol

Josh Trevisiol shares his perspective on The Hall Bulldog Project and the effort to revive Bob Hall's 1932 racing aircraft

Hall Bulldog Project
Pratt & Whitney Engine Installation Report

Pratt & Whitney Engine Installation Report

Original 1932 Pratt & Whitney installation reports for the Hall Bulldog's Wasp T3D1 engine, preserved through 1981 correspondence with aviation historian Michael Kusenda

Hall Bulldog Project
Hall Bulldog Rudder Pedals

Hall Bulldog Rudder Pedals

Original Springfield Aircraft Company engineering drawing of the Hall Bulldog rudder pedals with dimensional information and downloadable 3D model

Hall Bulldog Project
A Timeline of Hall Bulldog Drawings

A Timeline of Hall Bulldog Drawings

A chronological collection of Hall Bulldog 3-view drawings from 1933 to 2006, documenting how different artists interpreted this remarkable racing aircraft over the decades

Hall Bulldog Project
Interview with Matthew Lawlor

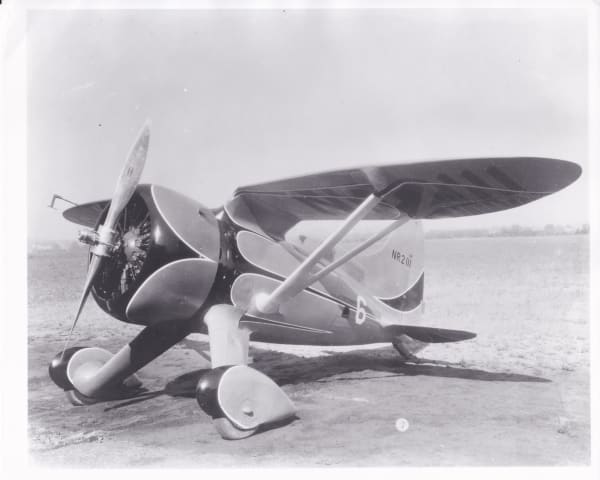

Interview with Matthew Lawlor

Project historian Matthew Lawlor discusses the history of Bowles Agawam Airport and his research into the Hall Bulldog

Hall Bulldog Project
Interview with Kevin Kimball

Interview with Kevin Kimball

Kevin Kimball discusses his experience building the Gee Bee Z, an earlier Bob Hall design, and shares insights into Hall's engineering approach

Hall Bulldog Project
Hall Bulldog Teaser Trailer

Hall Bulldog Teaser Trailer

The official teaser trailer introducing The Hall Bulldog Project - an ambitious effort to document and revive Bob Hall's legendary 1932 racing aircraft

Hall Bulldog Project
Mike Kusenda's Hall Bulldog Talk at SARH

Mike Kusenda's Hall Bulldog Talk at SARH

Notes and audio from Mike Kusenda's presentation on the Hall Bulldog to the Society of Air Racing Historians, covering the aircraft's development, flight testing, and fate

Hall Bulldog Project

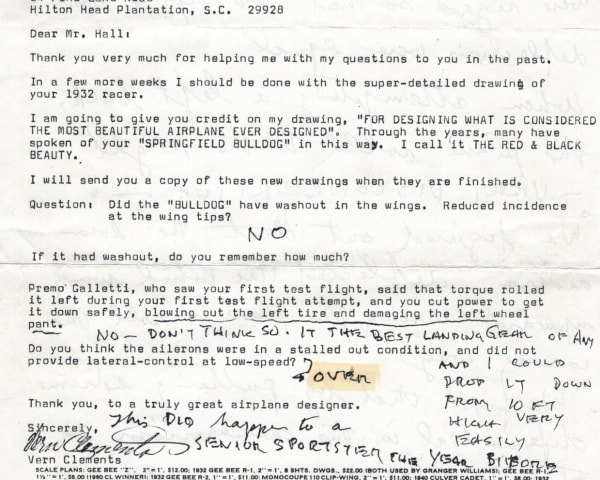

Letters Between Vern Clements and Bob Hall
